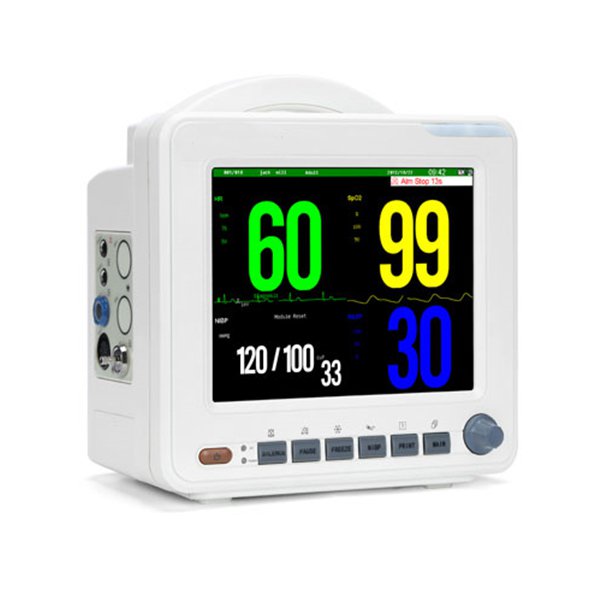

900L Multipara Icu Bedside Monitor Device

900L Multipara Icu Bedside Monitor Device

Vital Sign Monitor

8" 3 para

NIBP,SpO2,PR

Features &Benefits:

1.        10.4”,12.1”,15” color TFT display,

2.        Separated para board: ECG, NIBP, SpO2 board;

3.        Full touch-screen enables intuitive operation by clicking one the specific parameters or the waveform in real time, standard configuration includes the navigation knob.

4.        Real time S-T segment analysis, Drug Dose Calculation and ARR analysis;

5.        SpO2 Pitch Tone Variation and Drug Dose Calculation;

6.        Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic

7.        Parameter waveform and characters color selectable

8.        Standby mode for Energy saving and suspend monitoring;

9.        7-lead ECG waveforms display in phase;

10.    Capture dynamic waveforms;

11.    Internal storage: 3600s full-disclosure waveform review;

12.    External storage: SD card slot enables memory extension;

13.    Built-in rechargeable lithium battery, and battery volume checking,

14.    AC power checking

15.    Efficient resistance to interference of defibrillator and HF knife;

16.    SINNOR F-6 SpO2 technology, VS Nellcor accuracy;

17.    Networking capacity and TCP/IP networking platform enable abundant future upgrade

18.    Time delay switch-off function keep the monitor data restart monitor;

19.    Complete and flexible mounting solution for transportation and in-patient monitoring

Standard parameters: 5-lead ECG, SpO2(F-5),NIBP, TEMP,RESP,PR,HR.

Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO,

Performance Specifications

Display:                          color TFT, 15”, Resolution:1024×768,

12”, 10.4” Resolution:1024×768,

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

Trace:                8 waveforms(7 ECG, 1 SPO2 and 1 RESP)

Sweep speed:12.5mm/s,25mm/s,50mm/s

Indicator:             Power/battery indicator light

QRS beep and alarm sound

Battery:               Rechargeable lead acid cell, 12v/4AH

Max.24 hour for charging, 4 hours for continue working

Trend:             Parameter graphic and tabular trends:

5s/piece,8 hours;

1min/piece,168 hours(24h×7days)

5min/piece,1000 hours.

Storage:            NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 1 hour

Alarm:                    User-adjustable High, Medium and Low limits 3-level Audible and visual alarm

Networking:         Connected to central monitoring system

TCP/IP netting platform

Recorder:              Build-in, thermal array

Plethysmogram caveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type:         Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Specifications

ECG:

Lead mode:                                5 –lead(R,L,F,N,C)

Lead selection :                        I,II,III,avR,avL,avF,V

Waveform:                          3 and 7 channel selectable

Gain selection:                        0.5mm/mv,1mm/mv,2mm/mv

Sweep speed:                          12.5mm/s;25mm/s;50mm/s

Heart rate range:               Adult: 15~300bpm;

Neonate:/pediatric:15~350bpm

Accuracy:                                   +1bpm or +1%,whichecer is greater

Resolution:                          1bpm

Filter:                                            surgery mode:1~20Hz

monitor model:0.5~40Hz

Diagnostic mode:0.05~130Hz

Scaling signal:                          1mv,+3%

Protection:                         withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation

Alarm range:                            15~350bpm

S-T segment detecton:

Measurement range:  2.0mV~+2.0mV

 Alarm  Range:         -2.0mV~ +2.0mV

Accuracy:            -0.8mV ~+0.8Mv

Error:               +0.02Mv

Arrhythmia analysis:     YES

SPO2

Measurement range:        0~100%

Resolution:                1%

Accuracy:                 +2%(70-100%);0-69% unspecified

Alarm range               0~100%

Pluse Rate:                range:20~300bpm

Resolution:1bpm

Error:+1bpm or +2%,whichever is greater

NIBP

Method:                   Digital Automatic oscillometric

Operation mode :           Manual/Automatic/continuous

Auto measurement time:     Adjustable(1~480min)

Measurement Unit:         mmHg/Kpa selectable

Measurement types:         Systolic, Diastolic, Mean

Measurement tange:

Range of Systolic   pressure:   Adult: 40~270mmHg

Pediatric: 40~220mmHg

Neonate: 40~135mmHg

Range of mean pressure:     Adult: 20~235mmHg

Pediatric: 20~165mmHg

Neonate: 20~110mmHg

Range of diastolic pressure:   Adult: 10~215mmHg

Pediatric: 10~150mmHg

Neonate :10~100mmHg

Over-pressure protection:     Double safety protection

Resolution:                 1 mmHg

Alarm:                    Systolic.Diastolic,Mean

RESPIRATION

Method:                     Thoracic impedance

Measurement range:           Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm:                 YES,10~40s

Resolution:                   1rpm

Accuracy:                    +2rpm

TEMPERATURE

Compatible probe:             YSI or CYF

Measurement range:           5~50℃

Resolution :                   0.1℃

Accuracy:                    +0.1℃

Refreshing time:               about 1

Average measuring time:        <10s

Miscellaneous

Satety:

Safety level: Class I, type CF

Dimendion and Weight

Dimendion:      440×430×450

G.Weight:        <9.0KS

Operation Environment

Temperature:    Working 0~+40℃

Transportation and storage –20~+60℃

Humidity:       working≤85%

Transportation and storage≤93%

Power:          AC 100-240,50/60Hz

Patient range:    Neonate,pediatric,and adult patients

Accessories supplies

(1) 5 lead ECG cable

(2) 1 spo2 probes

(3) 1 NIBP prbe

(4) 1 temp probe

(5)1 ground connecting liner

(6) Chest electrode (10pcs/set)

Packaging:

Generally, we pack our goods in noutral cardboard box or wooden box. If you have legally registered patent, we can pack the goods in your branded boxes

atter geting your authorization iatpers.

Shipping:

Generally, it will lake 7 1o 20 days affer receiving your advance payment

Te specifc delivery lime depano on te lams ind the quantiy of your order.

Sample Availability & Pollcy

We can supply the sample if we have reacy parts in stock, but the cuslomers have to pay the sample cbst and the courier cost.
