EB019 3 functions electric hospital medical adjustable beds EB019 3 functions electric hospital medical adjustable beds

Service time: 24 hours
Min order :5PCS
CE certificate
Sales mode:Wholesale
Best selling icu hospital bed with competitive prices

Quantity:
Share this:

SPECIFICATION

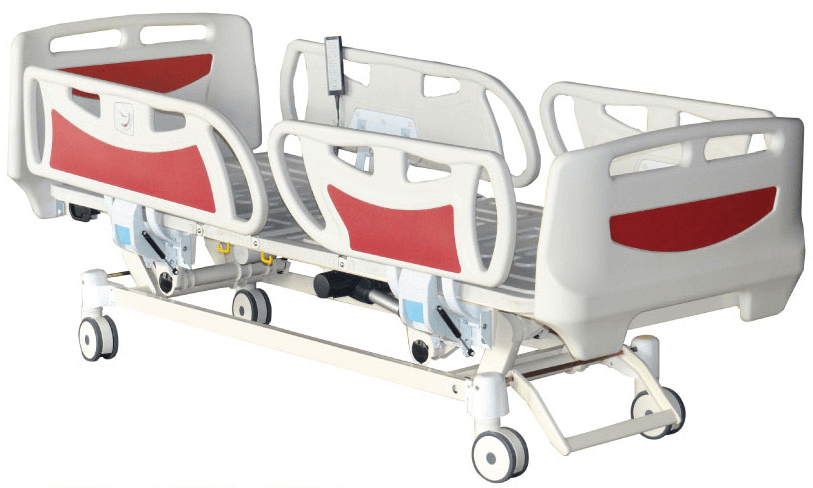

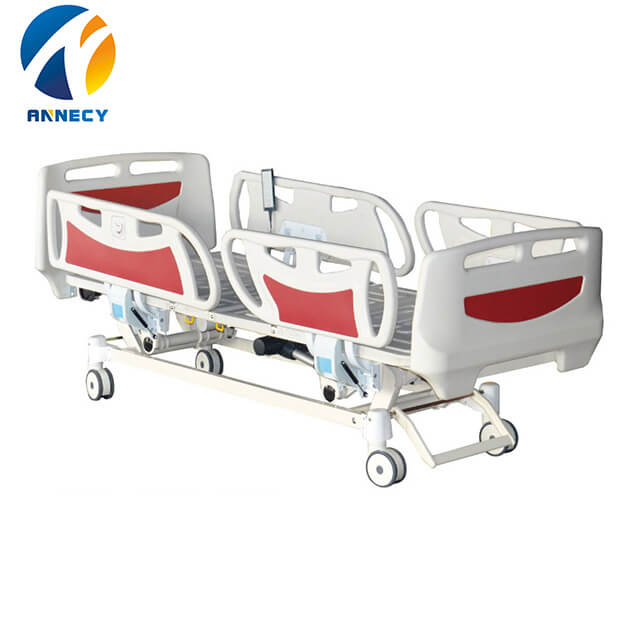

EB019 3 functions electric hospital medical adjustable beds



Parameter

Category

External L*W*H

2150*950*(460-720)mm

Mattress Platform

1900*900mm

Safe Working Load

250kg

Back-rest Adjustment

0-75°(±10°)

Knee-rest Adjustment

0-45°(±10°)

5" Double Side Secure®Castors,Central Locking

4pcs

ABS Side Rail Extra Height

1set

ABS Bed Ends with Safe Lock

1set

IV Pole

1set

IV Pole Prevision

4pcs

Drainage Hook

2pcs

Central brake

1 set

Optional accessory

Mattress&over-bed table &bedside cabinet &

back-up battery& CPR control




FEATURES

Specification: L2150*W950*H460-720mm

Standard Accessory.

Detachable ABS head/foot board

Embedded rails control

Embedded nurse control on the foot board

Collapsible aluminium alloy side rail

Integrated stamping frame and mattress

base are made of steel epoxy

l V Pole Drainage hook with PU cover

Center control lock

Chassis with ABS cover

Optional accessory:

Mattress&over-bed table &bedside cabinet &

back-up battery& CPR control


02

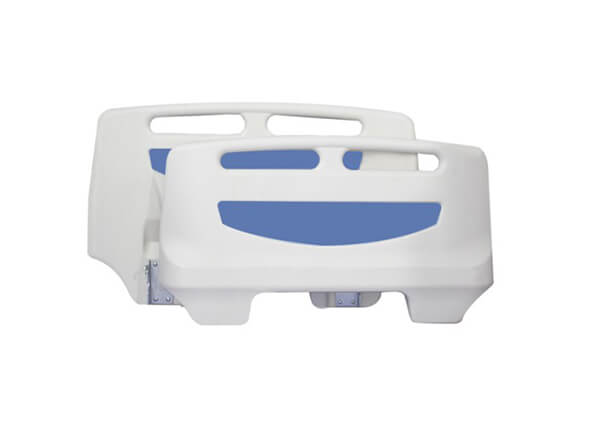

PP Head and Foot Board


PP material Head and foot board will never wihrate and noise after the safe steel clarnp tighily to make pu e bed convenieritty Detachable head and fsot board can he quickly removed for emergeney posilion


head foot board.jpg
pp side rail big.jpg

03

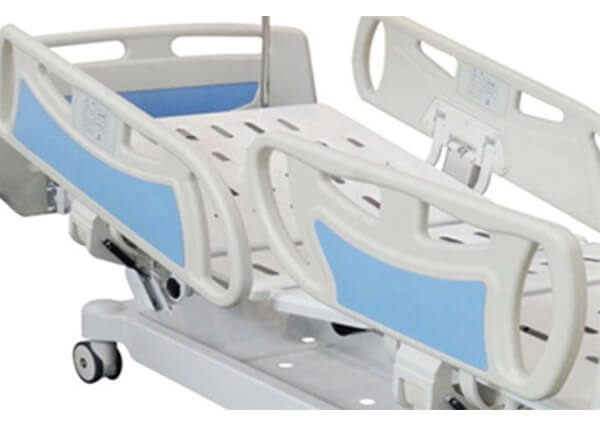

4 pcs PP  Side Rail long and short


4 PCS PP SIDE RAIL, which can be Raised and Lowered resepectively is vey convenienty tor the patent to get on. or gef off the bed PP matera, Its smpoeth tender in outside profle, and easy to dearn

04


Bed Panel


4 parts steel powder coated bed panel

bed panel.jpg


PRODUCT DETAILS

Using Instruction and Notes:

1. Safe working Load-Maximum 250KG

2. All controlled parts must be operated by medical personnel.

3. When need to remove head and fool boards to meet medical requirement medical personnel should stand well, open the clamp. clutch both side ends of head and foot boards and pull i vertically

4. Patent and family members are not allowded to use any parts of bed to take exercise. get well exercise, or personal injuny or equipment damage could occur.

5. Before moving the bed indoor,need to release the brake. When reach the desired position, set the brake. It's not allowed to move the bed in force on uneven floor.

6. Do not use chlorine disinefeetor to disinfect hospital bed

7. If there are some problems please call the company for assistance. We will offler mainantenance service. Out of guarantee will charge on the circumstace.

1CE CERTIFICATE for Annecy machinery.jpg1hospital bed.jpg




PACKAGING&SHIPPING

Packaging:

Generally, we pack our goods in noutral cardboard box or wooden box. If you have legally registered patent, we can pack the goods in your branded boxes

atter geting your authorization iatpers.

Shipping:

Generally, it will lake 7 1o 20 days affer receiving your advance payment

Te specifc delivery lime depano on te lams ind the quantiy of your order.

Sample Availability & Pollcy

We can supply the sample if we have reacy parts in stock, but the cuslomers have to pay the sample cbst and the courier cost.
