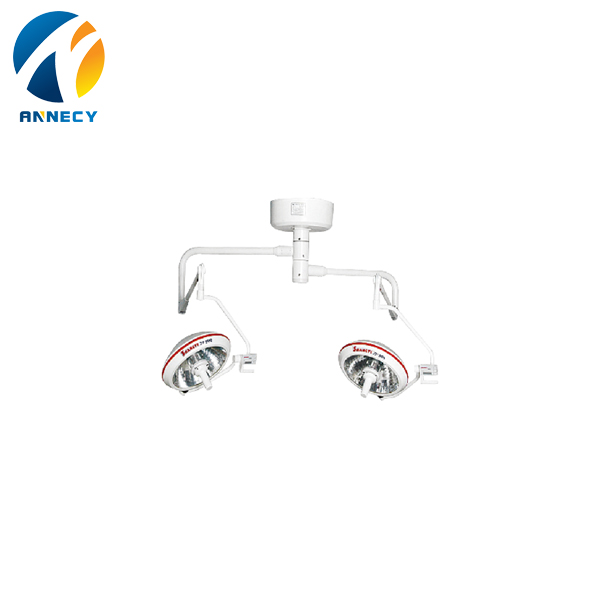

HOL008 Medical Hospital Halogen Emergency Light

HOL008 Medical Hospital Halogen Emergency Light

Detail info:

shadowless Operating lamp  can widely be used in diversified  operation occasion to meet the demand of the illumination, and it is the ideal illumination instrument of the modern operating theater.

 The Whole reflection optical system is made by CAD/CAM technology, its illumine depth is up to 1000mm ;by using color temperature compensation technology, the color reversion is uprised, and it is more suitable  for the illumination of the complex surgery such as encephalon surgery and thorax surgery. The panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable.Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely. 360  universal design can satisfy various needed height and angle in the operation.

Technical Date

Illuminance:≥100,000Lux/≥100,000Lux

Colour temperature:4500±300K                   Colour reduction index(Ra):93

Illuminance depth:≥1000mm          Total irradiance:580W/m²

The ratio between irradiance

and illuminance :4.7mW/m²lx

Size of light field:160～280mm

Rated power of bulb 24V:150W/150W        Service life of illuminant:1,000h

Power supply voltage:AC110-240v,50/60Hz

Brightness adjustment:Automatic8-stage continuous light adjustment

Shift of major and stand by lamp s:Automatic

Lowest height of installation:2900mm

The packing measures(cm) and GW/NW (kg)

2 piece in a carton: 80*81*36（cm）

GW:14kg NW:8kg

1 piece in a wooden case: 122*43*72（cm）

GW:65kg NW:50kg

Packaging:

Generally, we pack our goods in noutral cardboard box or wooden box. If you have legally registered patent, we can pack the goods in your branded boxes

atter geting your authorization iatpers.

Shipping:

Generally, it will lake 7 1o 20 days affer receiving your advance payment

Te specifc delivery lime depano on te lams ind the quantiy of your order.

Sample Availability & Pollcy

We can supply the sample if we have reacy parts in stock, but the cuslomers have to pay the sample cbst and the courier cost.
