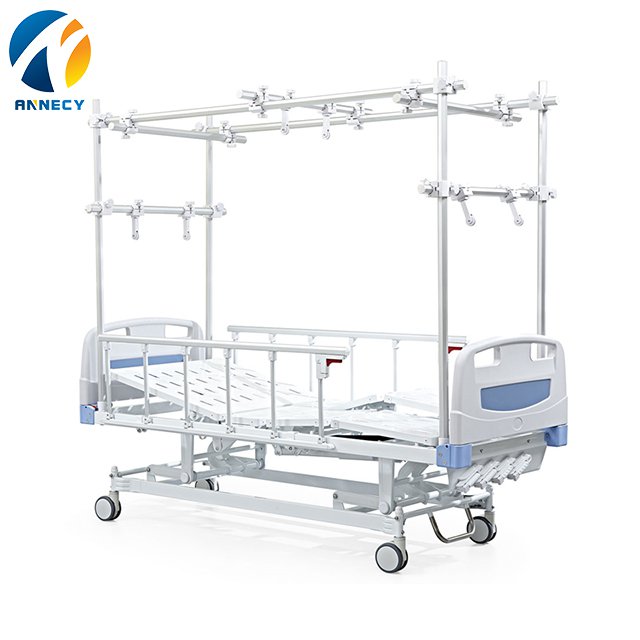

MB025 Lumbar Spinal Traction Orthopedic Bed

MB025 Lumbar Spinal Traction Orthopedic Bed

Specification:

Overall dimension：L2200*W980*H490-720mm

Back rest tilting：80°±5°，knee board tilting：40°±5°

Hi-lo adjustment between:490-720mm

Standard configuration：

4 sets manual crank systems；

central-controlled brake system,4pcs luxurious cnetral locking castors;

1 pair plastic head/foot-end boards；

1 pair Aluminium siderails

4pcs urine hooks;

1pc S.S I.V pole;

1 set orhopedics traction frame;

Options：

Medical mattress； dining board；bedside cabinet；

patient file panel；sundries basket

Using Instruction and Notes:

1. Safe working Load-Maximum 250KG

2. All controlled parts must be operated by medical personnel.

3. When need to remove head and fool boards to meet medical requirement medical personnel should stand well, open the clamp. clutch both side ends of head and foot boards and pull i vertically

4. Patent and family members are not allowded to use any parts of bed to take exercise. get well exercise, or personal injuny or equipment damage could occur.

5. Before moving the bed indoor,need to release the brake. When reach the desired position, set the brake. It's not allowed to move the bed in force on uneven floor.

6. Do not use chlorine disinefeetor to disinfect hospital bed

7. If there are some problems please call the company for assistance. We will offler mainantenance service. Out of guarantee will charge on the circumstace.

Packaging:

Generally, we pack our goods in noutral cardboard box or wooden box. If you have legally registered patent, we can pack the goods in your branded boxes

atter geting your authorization iatpers.

Shipping:

Generally, it will lake 7 1o 20 days affer receiving your advance payment

Te specifc delivery lime depano on te lams ind the quantiy of your order.

Sample Availability & Pollcy

We can supply the sample if we have reacy parts in stock, but the cuslomers have to pay the sample cbst and the courier cost.
