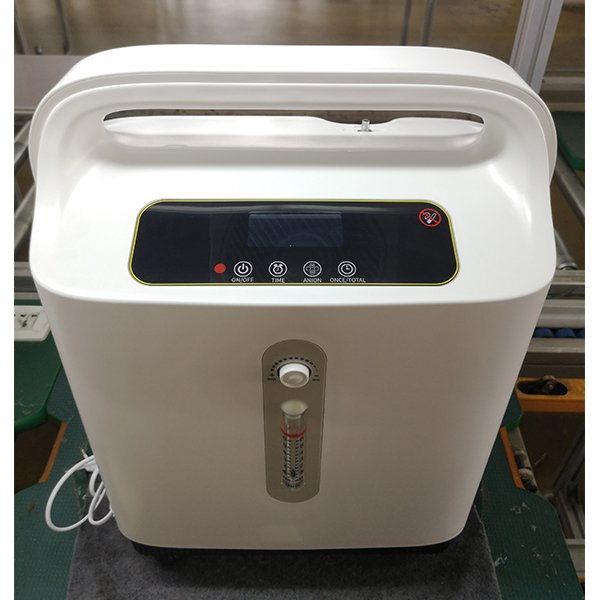

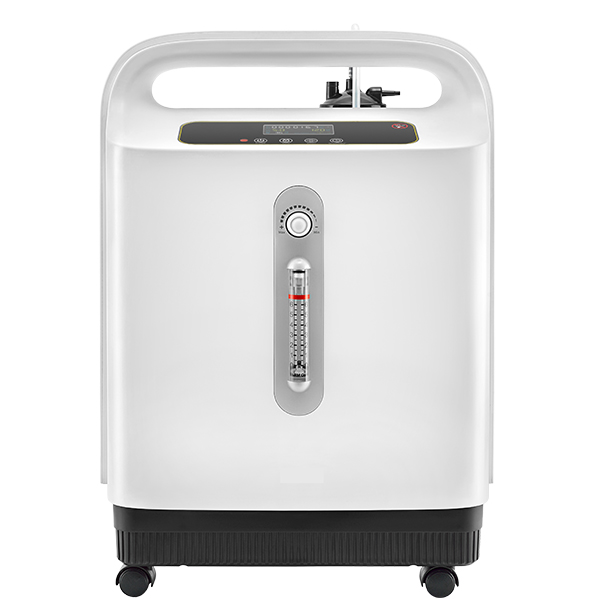

New Design Portalbe Oxygen Concentrator Machine

New Design Portalbe Oxygen Concentrator Machine

Main technical specifications

1. Recommended maximum oxygen flow: 5L/min.

2. Flow scope when the nominal pressure at the outlet is 7kPa: 0.5L/min～5L/min.

3. Apply 7kPa back pressure at the recommended maximum flow, the flow reaches accuracy of ± 10% to the indicated flow.

4. Oxygen concentration when the nominal pressure at the output is zero (achieve the required oxygen concentration level within 30 minutes of the initial startup): the oxygen yield is 0.5L/min to 3L/min, the oxygen concentration is ≥90%.

5. Output pressure: 0.02MPa～0.07MPa

6. See Figure 1 for function table of oxygen concentration and oxygen flow when the nominal pressure at the output is zero.

7. Release pressure of compressor’s safety valve: 280kPa±50kPa

8. Noise: ≤ 60dB(A)

9. Maximum nebulization rate: ≥ 0.1mL / min (for model with nebulizer)

10. Power supply voltage: 220V±22V/110V±11V, 50Hz/60Hz ±1Hz

11. Input power: 450VA

12. Net weight:     17Kg.

13. Dimensions:40×26×59.5(cm)

14. Altitude: the oxygen concentration will not be reduced when it is from sea level to 1828m, but the oxygen concentration will be less than 90% when it is from 1828m to 4000m

15. Safety system:

▲ Shutdown due to current overload or loose connections

▲ Shutdown due to high temperature of compressor;

▲ Low oxygen concentration alarm;

16. Shortest working hours: not less than 30 minutes.

17. Electrical classification: Class II equipment, type B application part

18. Running mode: continuous operation

19. Normal working environment

▲ Ambient temperature range: 5 ℃ to 40 ℃;

▲ Relative humidity range: ≤ 80%;

▲ Atmospheric pressure range: 860hPa to 1060hPa.

Notice: When the storage and transportation temperature is below 5℃, the oxygen concentrator shall

be placed in normal working temperature for more than 4 hours before operation.

20. Oxygen outlet temperature: ≤ 46℃

21. Suggestion: the length of the oxygen tube shall not exceed 6 meters, and the oxygen tube can not be bent or deflated.

22. Storage and transportation environment:

▲ Ambient temperature range: -40℃～+70 ℃;

▲ Relative humidity range: 10% to 100%, and no condensation;

▲ Atmospheric pressure range: 860hPa to 1060hPa.

Notice: The oxygen concentrator shall be stored inside the room where there is no strong sunlight, no corrosive gases but well ventilated. Do not shake or place upside down the oxygen concentrator during transportation.

List of packaging

1. oxygen concentrator      1 piece

2. disposable nasal oxygen tube      2 pieces

3. air filter      6 pieces

4. fuse   1 piece

5. remote control 1 piece

6. O-shaped sealing ring of humidifier     1 piece

7. Operation Instruction     1 copy

The oxygen concentrator with nebulizer is additionally provided with air pipe, nebulization medicine cup, nozzle or face mask.

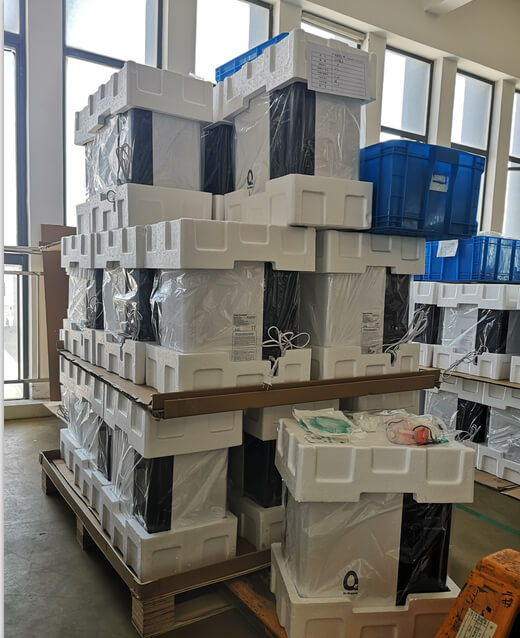

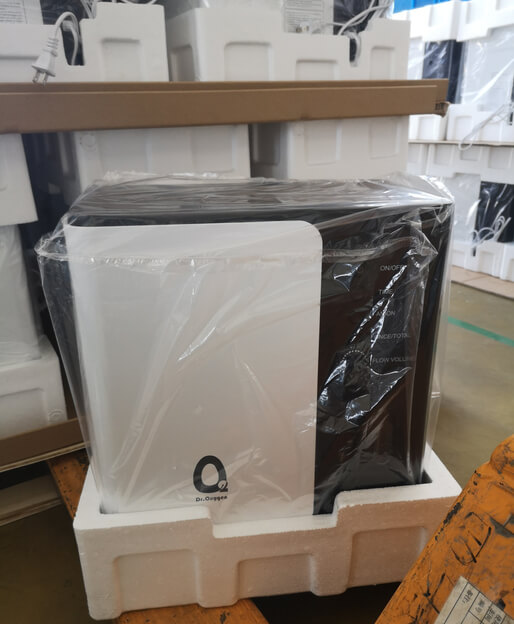

Packaging:

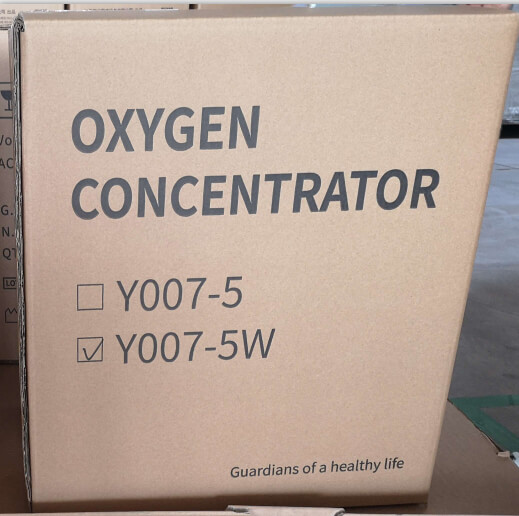

Generally, we pack our goods in noutral cardboard box or wooden box. If you have legally registered patent, we can pack the goods in your branded boxes

atter geting your authorization iatpers.

Shipping:

Generally, it will lake 7 1o 20 days affer receiving your advance payment

Te specifc delivery lime depano on te lams ind the quantiy of your order.

Sample Availability & Pollcy

We can supply the sample if we have reacy parts in stock, but the cuslomers have to pay the sample cbst and the courier cost.
