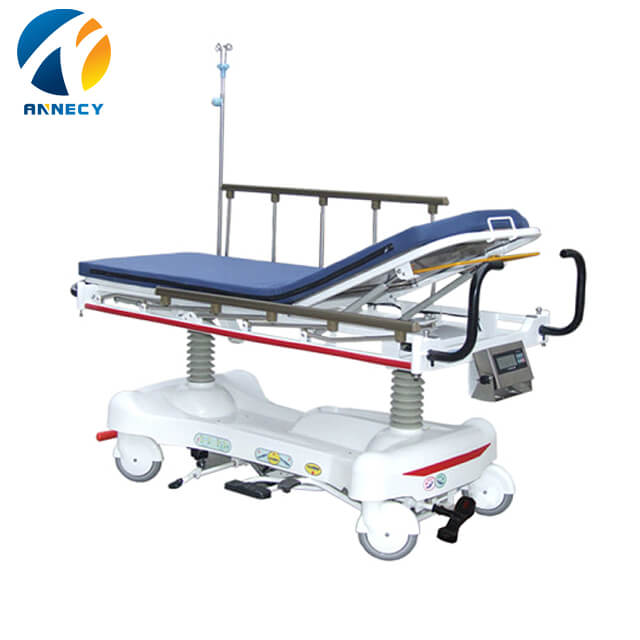

ST009 Emergency Medical Patient Transfer Stretcher Trolley

ST009 Emergency Medical Patient Transfer Stretcher Trolley

Specifications Two Separate Hydraulic Pump;  Rise-and-Fall Guide Wheel;  X-ray Back Rest;  Aluminum Alloy Side Rail;  CPR.  Technical Features Full Length 212CM Full Width 80CM Bed Base Height Range Maximum    Height    93CM Minimum     Height    63CM Bed Base Angle Position Adjustable Back section panel         0-75°      Leg section panel           0-45°  Trendelenburg                 0-15° Anti-Trendelenburg         0-15° Maximum safe load Optional 250KG 0.05KG,0.02KG Diameter of Centrally Control Silent and Dustproof Castor 20CN Special Allocation • Two Separate Hydraulic Pump • Hydraulic Control Panel • I.V.Pole • Rise-and-Fall Guide Wheel • Weight Reading System • Mattress (optional) • Aluminum Alloy Side Rail • Back Rest may X-ray(Electric Panel made in America) • CPR • Top Coat: Electrostatic Power Coating • Bed Frame: Cold-Rolled Steel Tube

Product Size: 2070*730*660/940mm

Material: The Stretcher Cart is made of galvanized steel tube and surface coated by electrostatic spray. The back board is made of  American electrotyped board with X-ray cassette. It is equipped with the imported double hydraulic rise-and-fall system.

Description:

    The international advanced centrally controlled brake system is applied to the cart and φ200mm dustproof castors make the cart move steadily, reliably and lightly. The bed can be raised and lowered, tilted forward and backward which is controlled by the treadle lying on two sides of the bed. The bottom cover is made of PP material and shaped by once injection that can be easily cleaned. The cart surface is of separate structure and the upper part is supported by the imported large hydraulic pole to make the bed never sway. It is completed with infusion stand, drainage hook and collapsible aluminum alloy side rails. It is the best choice for emergency room, ICU, ICU bed and emergency bed for transferring patient.

    The security, reliability and practicability of the Stretcher Cart attain national standard.

    Its in-bed scale system increase efficiencies by taking accurate weight readings with the patient in any position.

Packaging:

Generally, we pack our goods in noutral cardboard box or wooden box. If you have legally registered patent, we can pack the goods in your branded boxes

atter geting your authorization iatpers.

Shipping:

Generally, it will lake 7 1o 20 days affer receiving your advance payment

Te specifc delivery lime depano on te lams ind the quantiy of your order.

Sample Availability & Pollcy

We can supply the sample if we have reacy parts in stock, but the cuslomers have to pay the sample cbst and the courier cost.
