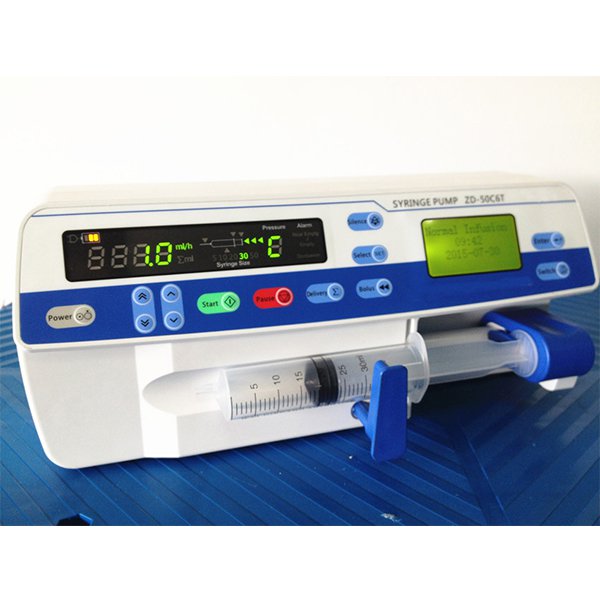

SP-50C6T Hopsital Medical Types Of Syringe Pump

Syringe   Size

5ml,   10ml, 20ml, 30ml, 50ml ( optional: 1/2/3mL )

Flow   Rate

0.0-150ml/h   (0.1ml/h increment)                           5ml   syringe

0.0-300ml/h   (0.1ml/h increment)                           10ml syringe

0.0-600ml/h   (0.1ml/h increment)                           20ml   syringe

0.0-900ml/h   (0.1ml/h increment)                           30ml syringe

0.0-1200ml/h   (0.1ml/h increment,1ml/h increment if over 1000ml/h)  50ml syringe

Precision

≤±2%(mechanism≤±1%)

Inquiry   of total volume

0.0ml-9999ml(0.1ml   increment, 1ml increment if over 1000ml)

VTBI

0.0ml-9999ml(0.1ml   increment, 1ml increment if over 1000ml)

Occlusion   Value

High(H):800±200mmHg    (106.7±26.7kPa)

Centre(C):500±100mmHg   (66.7±13.3kPa)

Low(L):300±100mmHg     (40.7±13.3kPa)

Alarm

Remind   alarm,Occlusion alarm,Near empty alarm, Empty alarm, syringe barrel unlock   alarm, syringe plunger disengage alarm, syringe flange disengage alarm, AC   power failure, Low battery alarm, Battery empty alarm, VTBI finish reminder,   infusion tube disconnect(option)

Power

AC:100V-240V±10%,   50Hz-60Hz±1Hz

Built-in   Battery:DC15V Ni-MH battery. Built-in battery can run for 10 hours at 5ml/h.

               (It can be replaced by lithium ion battery pack if necessary.)

DC:DC15V,vehicle   power

Running   Environment

Temperature:+5℃-+40℃

Relative   Humidity:20%-90%

Atmosphere   Pressure:860hPa-1060hPa

Transport   And Storage Environment

Temperature:-20℃-+55℃

Relative   Humidity:10%-93%

Atmosphere   Pressure:500hPa-1060hPa

Electric   Safety Classification

Class I,   CF type,Built-in battery,Continuous operation equipment

Water   Proof Level

IPX4

Net   Weight

2.2kg(include   fastener)

Dimension

320mm(W)×   132mm(H)× 138mm(D)

Function

KVO   rate

Safety   lock for PURGE/BOLUS

All   brands of syringes are   available

Preset   occlusion detection pressure level

Preset   Volume To Be   Infused

Varied   video and audio   alarm

RS232   interface

4500   history   log

Standby   function

Safety   lock for flow rate adjust

Automatic   syringe size detection

Bolus   release

Inquiry   of total infused volume

Power   indicator

Vehicle   Power

Double   CPU

Advanced   Function

Adjust   occlusion detection   pressure

Adjust   KVO rate

Preset   maximum limit amount of single bolus

Preset   volume of alarm voice

Calibrate   parameter of syringe

Preset   residual amount of solution

Preset   maximum value of flow rate

Preset   system time
