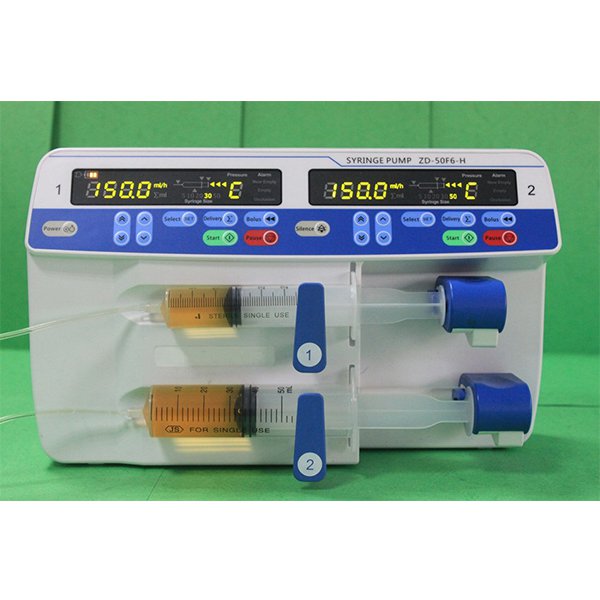

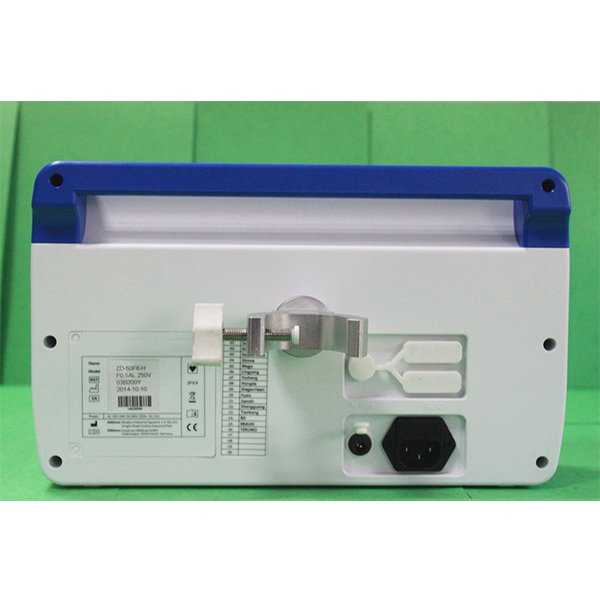

SP-50F6-H Big Medical Syringe Infusion Pump

Syringe Size

5ml, 10ml, 20ml, 30ml, 50ml ( optional: 1/2/3mL )

Flow Rate

0.0-150ml/h (0.1ml/h increment)                               5ml syringe

0.0-300ml/h (0.1ml/h increment)                               10ml syringe

0.0-600ml/h (0.1ml/h increment)                               20ml syringe

0.0-900ml/h (0.1ml/h increment)                               30ml syringe

0.0-1200ml/h (0.1ml/h increment,1ml/h increment if over 1000ml/h)  50ml syringe

Precision

≤±2%(mechanism≤±1%)

Inquiry of total volume

0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml)

VTBI

0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml)

Occlusion Value

High(H):800±200mmHg  (106.7±26.7kPa)

Centre(C):500±100mmHg (66.7±13.3kPa)

Low(L):300±100mmHg   (40.7±13.3kPa)

Alarm

Remind alarm,Occlusion alarm,Near empty alarm, Empty alarm, syringe barrel unlock alarm,

 syringe plunger disengage alarm, syringe flange disengage alarm, AC power failure, Low battery alarm,

Battery empty alarm, VTBI finish reminder, infusion tube disconnect(option)

Power

AC:100V-240V±10%, 50Hz-60Hz±1Hz

Built-in Battery:DC15V Ni-MH battery. Built-in battery can run for 10 hours at 5ml/h.

             (It can be replaced by lithium ion battery pack if necessary.)

DC:DC15V,vehicle power

Running Environment

Temperature:+5℃-+40℃

Relative Humidity:20%-90%

Atmosphere Pressure:860hPa-1060hPa

Transport And

 Storage Environment

Temperature:-20℃-+55℃

Relative Humidity:10%-93%

Atmosphere Pressure:500hPa-1060hPa

Electric Safety Classification

Class I, CF type,Built-in battery,Continuous operation equipment

Water Proof Level

IPX4

Net Weight

3.5kg(include fastener)

Dimension

320mm(W)× 193mm(H)× 138mm(D)

Function

KVO rate

Safety lock for PURGE/BOLUS

All brands of syringes are available

Preset occlusion detection pressure level

Preset Volume To Be Infused

Dual channel

RS232 interface

4500 history log

Standby function

Safety lock for flow rate adjust

Automatic syringe size detection

Bolus release

Inquiry of total infused volume

Power indicator

Vehicle Power

Double CPU

Advanced Function

Adjust occlusion detection pressure

Adjust KVO rate

Preset maximum limit amount of single bolus

Preset volume of alarm voice

Calibrate parameter of syringe

Preset residual amount of solution

Preset maximum value of flow rate

Preset system time
